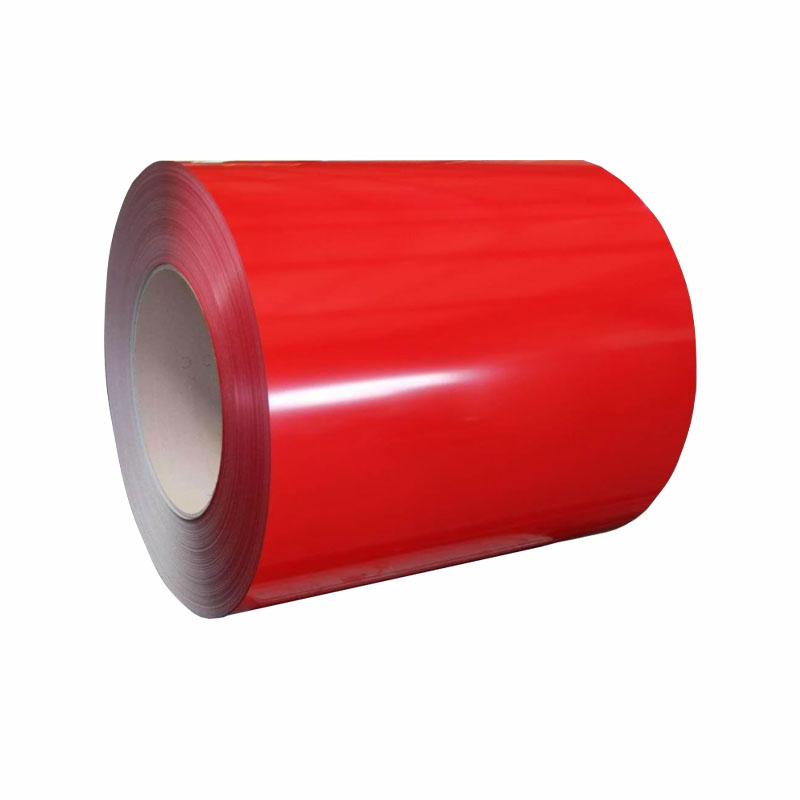

After surface pretreatment, one or several layers of organic coating are
applied on the surface, and then baked and solidified. The color coated
steel coil is light in weight, beautiful in appearance, and has good
anti-corrosion performance, and can be directly processed. The color is
generally divided into gray, sea blue, brick red, etc. It is mainly used
in advertising, construction,decoration, home appliances, electrical
appliances, Furniture industry and transportation industry. The coatings
used for color coated steel coils are based on the environment in which
the resin is selected, such as polyester silicon modified
polyester,polyvinyl chloride plastisol, polyvinylidene chloride, and the
like.

Specification:

Thickness: 0.1mm-3.0mm
Width: 10-1500mm
Zinc coating: Z30-275g/m2 & AZ30-180g/m2
Paint thickness Front: 10-40um, Back: 5-30um
Color: RAL color or as customer’s sample
Standard: DX51D, SGCC, ASTM A653, ASTM A792 etc
Paint: PE, HDP, PVDF, SMP(Akzo Nobel, Nippon etc)
Coil ID: 508mm & 610mm
Glossiness: 60-98%
Delivery time: 5-30days
