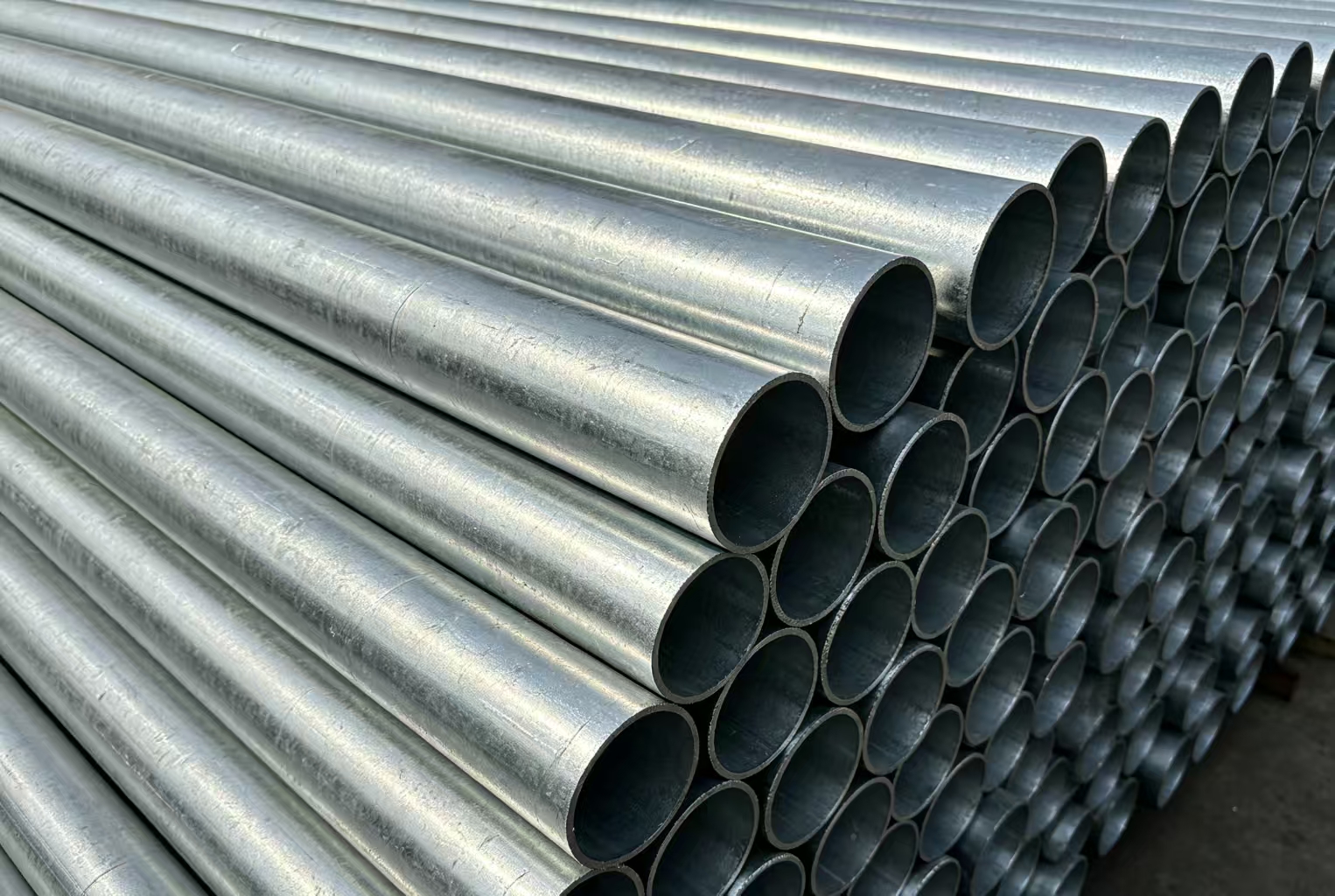

Galvanized circular pipe

Name: Galvanized circular pipe
SKU: 168*5.5
Price: 385 EUR
Availability: InStock

385,00 €

Core specifications (National Standard GB/T 3091-2015).

1. Nominal diameter: DN150 (6-inch pipe).

2. Actual outer diameter: 168.3 mm (commonly referred to in the industry as 168 mm).

3. Wall thickness: 5.5 mm (thickened version; thicker than the 4.5 mm wall thickness, offering greater pressure resistance).

4. Inner diameter: ≈ 157.3 mm

5. Standard lengths: 6 meters per pole. Custom lengths available from 3 to 12 meters.

6. Theoretical weight – Black tube (untreated): 22.08 kg/m

– Hot-dip galvanized finished product (with zinc added to increase weight by 3%): ≈ 22.74 kg/m

– Weight of a single 6-meter pole: approximately 136.46 kg per pole.

Availability: 1000 in stock

Store:

0 out of 5

SKU: 168*5.5 Category: Galvanized Steel Tag: building material

Ask a Question

Materials and craftsmanship.

1. Base material: Q235B carbon steel, seamless high-frequency welded pipes; some can be made into seamless galvanized pipes.

2. Galvanization method: hot-dip galvanization, uniform coating on both inner and outer surfaces, excellent corrosion resistance.

3. Zinc coating standard: zinc coating weight ≥ 500 g/m², thickness 75–120 μm, suitable for underground use for 15–25 years.

4. Tolerances: Outer diameter ±1%, wall thickness ±10%, sufficient thickness according to national standards from major manufacturers.
